Oxetane Synthesis in Drug Discovery: From Scaffold Design to CRO Scale-Up

Why Oxetanes Are Everywhere in Modern Drug Pipelines

A quick scan of any major medicinal chemistry journal from the past five years tells the same story — oxetane-containing compounds are in pharmaceutical industry pipelines at every stage from hit-to-lead through clinical development. The four-membered cyclic ether went from a niche scaffold in the 2000s to a workhorse modification in oncology, CNS, and antiviral programs. Carreira’s seminal 2006 paper on oxetane bioisosteres of gem-dimethyl groups is the citation that opened the floodgates, and oxetane chemistry has been mainstream medicinal chemistry ever since.

The gem-Dimethyl Bioisostere and Metabolic Stability Benefits

The 3,3-disubstituted oxetane is a near-perfect spatial mimic of a gem-dimethyl group, with a similar A-value, similar conformational rigidity, and a similar steric footprint at the substituted carbon. The difference is metabolism. The CH3 groups of a gem-dimethyl center are oxidized by CYP450 enzymes — a primary clearance pathway for many drug candidates. Replacing a gem-dimethyl with a 3,3-disubstituted oxetane drops microsomal clearance by 5- to 30-fold in a wide range of scaffolds, while preserving the same potency. That is a half-life win without a structure-activity relationship penalty, and it is the single biggest reason oxetane-3-yl building blocks now appear in routine fragment libraries.

Aqueous Solubility and LogP Improvement

Oxetanes drop measured logP by roughly 0.5 to 1.0 units relative to the gem-dimethyl parent, depending on substitution. The polar O atom in the ring contributes a hydrogen-bond acceptor without adding rotatable bonds or molecular weight. Programs that use 3,3-disubstituted oxetanes in late-stage optimization frequently report a clean increase in aqueous solubility — useful when a candidate needs higher exposure for an oral dose or improved formulation behavior. For an early-stage program scoping custom oxetane synthesis, the logP-lowering effect is often the second-most-cited reason after metabolic stability.

Notable Approved Drugs Containing Oxetane Rings

Oxetane scaffolds appear in a growing list of approved and late-stage clinical candidates. The Carreira group’s medicinal chemistry contributions to the field have been extensively reviewed by the American Chemical Society, and the scaffold’s track record is no longer hypothetical. The trend is acceleration, not maturation — oxetane-containing scaffolds are entering the clinic at a faster rate now than they were five years ago.

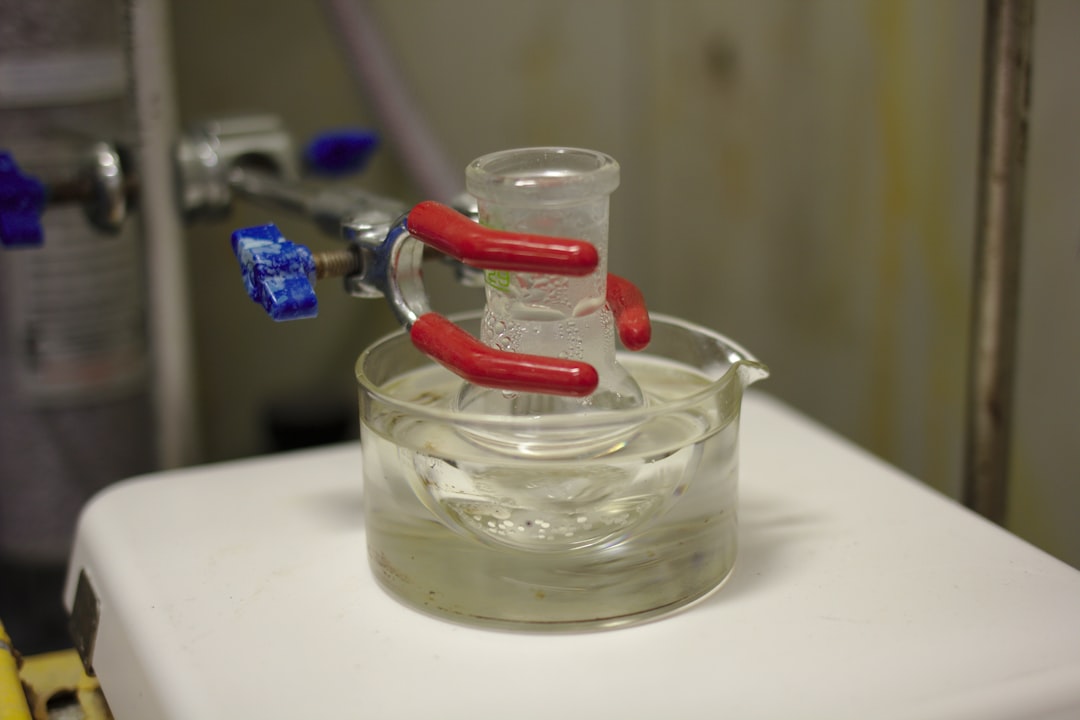

Photo: Stephan HK / Unsplash

Key Synthetic Routes to Oxetane Building Blocks

The oxetane intermediates a CRO is most often asked to make divide into three families: 3-substituted oxetane-carboxylic acids and esters, methylene oxetanes ((oxetan-3-ylidene) compounds), and 3,3-disubstituted oxetane derivatives obtained by alkylation or ring-construction routes. Each family has its own reliable synthesis and its own characteristic failure mode.

Synthesis of Oxetane-3-Carboxylic Acid and Methylene Derivatives

Oxetane-3-carboxylic acid is the workhorse intermediate. Most commercial synthesis routes start from 3-oxetanone (oxetan-3-one), which is itself made from 3,3-bis(hydroxymethyl)-1,3-propanediol-derived chemistry or by oxidation of 3-hydroxyoxetane. From oxetan-3-one, three reliable forward steps:

• Wittig olefination with stabilized phosphorus ylides delivers methyl 2-(oxetan-3-ylidene)acetate cleanly under controlled temperature, typically 0 °C to rt in THF or DCM
• Horner-Wadsworth-Emmons with triethyl phosphonoacetate and NaH/LiHMDS gives the same alkene with better E/Z control and easier scale-up
• Reduction of the ester to the aldehyde or alcohol opens up the standard medicinal chemistry handles

The HWE route is the production method of choice for kilo-scale work. It tolerates standard process scale-up, gives consistent E/Z ratios, and produces a crystalline ester that purifies by recrystallization rather than chromatography. The process chemistry path from lab to pilot maps cleanly onto this transformation.

(Oxetan-3-ylidene)acetic Acid: Routes and Lactonization Traps

(Oxetan-3-ylidene)acetic acid — the carboxylic acid of the HWE product above — is a frequent intermediate in scaffold elaboration, and a common stumbling block. Saponification of the methyl or ethyl ester under standard NaOH/MeOH or LiOH/THF/H2O conditions gives the free acid, but the acid sits one fast cyclization away from the corresponding bicyclic lactone. The intramolecular oxa-Michael addition of the oxetane oxygen onto the α,β-unsaturated carbonyl is favorable, and the lactonization runs at rt in protic solvents, on silica, and even in the NMR tube during characterization at slightly elevated temperature.

The fix is a combination of:

• Cold workup (≤ 0 °C) and cold storage of the free acid
• Aprotic recrystallization solvent (toluene, MTBE, or i-PrOAc)
• Avoiding silica for the final purification — telescope into the next step from the acid, or use trituration
• Tight control of pH during workup to avoid basic-promoted re-lactonization on the acid form

A CRO running this chemistry for the first time will often deliver the lactone instead of the acid. A CRO that has run it before will have a SOP for the workup and will deliver the free acid at >97% purity by qNMR. Ask for the qNMR. The HPLC-UV by itself does not always distinguish the acid from the lactone if both are eluting near each other.

Oxetanyl Methylene Lactones: Cyclization Selectivity Challenges

For programs that actually want the bicyclic lactone — and there are several, including the spiro-oxetane lactone scaffolds in oncology kinase inhibitors — the cyclization is the desired outcome. The selectivity question becomes whether you get the 4-exo-trig (fused) or 5-exo-trig (spiro) lactone, depending on substitution. Computational selectivity prediction is the standard route here, validated by a small DoE on temperature, base, and solvent. CROs with prior oxetane experience will typically deliver this in a single step from the unsaturated ester precursor.

Common Challenges in Oxetane Synthesis at Scale

Three problems show up repeatedly when oxetane building blocks scale from the medicinal chemistry bench to the pilot plant. None of them are deal-breakers — but each one needs an experienced process chemist to anticipate.

Ring-Opening Side Reactions

Oxetanes are stable to most reaction conditions, but they ring-open under any of the following:

• Strong Lewis acids (BF3, TMSOTf, AlCl3, BCl3) — common deprotection conditions
• Hot Brønsted acid (TFA at >50 °C, HCl in dioxane near reflux)
• Nucleophilic ring-opening by halides, hydride sources, and even some amines at elevated temperature

Process chemists who have been burned by this once know to design routes that introduce the oxetane after the acidic deprotections, not before. If a Boc group is on the same molecule as a sensitive oxetane, switching to Cbz or Fmoc is often the right call. The milligram-to-multi-ton custom synthesis playbook covers this kind of route-redesign decision in detail.

Stability Under Acidic Deprotection Conditions

A frequent quality issue: the bulk drug substance shows 1-3% of a ring-opened diol impurity that did not appear in the medicinal chemistry batch. The cause is almost always residual acid in a downstream solvent or a long acidic workup that the small-scale chemist did briefly. The fix is a low-temperature, time-bounded acidic step followed by an aggressive aqueous wash with bicarbonate, then drying. CROs running oxetane chemistry should be specifying acidic step time and temperature, not just reagent stoichiometry. This is the kind of process detail an experienced analytical method development group catches before it becomes a regulatory issue.

Photo: Vitaly Gariev / Unsplash

What to Specify When Outsourcing Oxetane Synthesis

Procurement-grade specifications matter more for oxetane chemistry than for many catalog scaffolds. The single most common cause of a failed oxetane delivery is an under-specified PO. Three areas to nail down before signing.

Structural Class and Substitution Pattern

Use the IUPAC name plus a structure file (mol or SMILES) on the PO. “Oxetane-3-carboxylic acid” is unambiguous; “oxetane carboxylic acid” is not — there are at least three regiochemical interpretations. For HWE products, specify E/Z ratio expected and tolerated. For 3,3-disubstituted oxetanes, the SMILES is the only safe way to describe the substitution pattern. Procurement teams who skip the structure file create downstream chemistry rework when the wrong regioisomer arrives.

Purity Requirements and Chiral Considerations

Set purity by qNMR, not just HPLC-UV. UV detection can miss saturated oxetane impurities entirely. For chiral oxetane-3-yl building blocks (rare but appearing in newer kinase scaffolds), specify enantiomeric excess by chiral HPLC or chiral SFC, with the analytical method named explicitly. CROs that develop a fit-for-purpose method for each campaign will save the program weeks compared to those running an underspecified release method.

Gram vs. Multi-Hundred Gram Quantities

Oxetane chemistry scales differently across decades. A 5-g lot of oxetane-3-carboxylic acid is a same-week delivery from a competent CRO. A 500-g lot of (oxetan-3-ylidene)acetic acid with the lactone controlled to <0.5% requires a process development study and four to six weeks. A 5-kg lot is a process chemistry program, with safety review, kilo-lab confirmation, and a process development report. Pricing and timing should be quoted against scale, not against a generic per-gram rate. A CRO that quotes the same per-gram rate from 1 g to 1 kg is either over-charging the small order or under-pricing the big one — neither is a good sign. The vendor selection rubric for custom synthesis provides a structured framework for sorting credible quotes from optimistic ones.

ChemContract Research: Oxetane Scaffold Synthesis Capabilities

ChemContract Research has supported oxetane building-block programs across more than 200 medicinal chemistry projects since the scaffold class first started appearing in our pipeline in the early 2010s. Across our 60+ R&D and manufacturing facilities and 500+ scientists, our oxetane capabilities include:

• Catalog and custom oxetane intermediates — oxetan-3-one, oxetane-3-carboxylic acid and esters, (oxetan-3-ylidene)acetic acid and lactone, 3,3-disubstituted oxetane derivatives
• HWE and Wittig olefinations — qualified for kilo-scale, with E/Z ratio specification and lactone-controlled workup SOPs
• Spiro-oxetane scaffold construction — including spiro-fused oxetanes for kinase, GPCR, and CNS programs
• Chiral oxetane synthesis — when the medicinal chemistry calls for a single-enantiomer building block
• Process development for oxetane-containing APIs — full route confirmation, process safety, and DoE-driven scale-up
• Analytical release — qNMR, chiral HPLC, GC-headspace, and ICH-grade impurity profiling matched to each scaffold

Quote turnaround is 24 hours. Standard oxetane intermediate delivery is two to four weeks at gram to 100-g scale. To scope a program, request a quote with structure file, scale, purity target, and target ship date — we will return a fit-for-purpose proposal inside one business day.

Frequently Asked Questions

1. Why are oxetanes so popular in modern drug design? 3,3-Disubstituted oxetanes mimic gem-dimethyl groups spatially while resisting CYP450 oxidation, dropping microsomal clearance 5- to 30-fold and lowering logP by roughly 0.5 to 1.0 units. Both effects improve drug-like profile without sacrificing potency, which is why oxetane scaffolds now appear in routine fragment libraries and most major medicinal chemistry pipelines.

2. What is the most reliable synthesis of oxetane-3-carboxylic acid at scale? The HWE olefination of oxetan-3-one with triethyl phosphonoacetate, followed by hydrolysis and (often) hydrogenation, is the production-scale workhorse. It tolerates kilo-lab scale, gives reproducible yields, and produces crystalline intermediates that purify without chromatography.

3. Why does (oxetan-3-ylidene)acetic acid lactonize during workup? The free acid sits one intramolecular oxa-Michael addition away from a bicyclic lactone. Protic solvents, silica, slightly elevated temperature, and basic conditions all promote the cyclization. Cold aprotic workup, telescoping into the next step, and avoiding silica purification are the standard mitigations.

4. Can oxetanes survive standard medicinal chemistry deprotection conditions? Mostly yes — but they ring-open under strong Lewis acids (BF3, TMSOTf), hot TFA, and aggressive nucleophilic conditions. Routes should be designed to introduce the oxetane after the harsh acidic deprotections, not before. If incompatible, switching the protecting group on a co-resident amine from Boc to Cbz solves most problems.

5. What CRO specifications matter most for oxetane intermediates? Use SMILES or a mol file on the PO, specify purity by qNMR (not just HPLC-UV), require chiral HPLC for any chiral oxetane-3-yl building block, and confirm the lactone impurity limit on (oxetan-3-ylidene) acid intermediates. Without these, the CRO can deliver a structurally wrong or impurity-laden lot that nominally passes UV release.

6. What scale of oxetane chemistry can be sourced from a CRO? Gram-scale lots typically ship in two to four weeks. Hundred-gram-to-kilo lots run four to eight weeks with process development. Multi-kilo and pilot-scale oxetane work is a full process program, including safety review and kilo-lab confirmation, and should be scoped as such.
